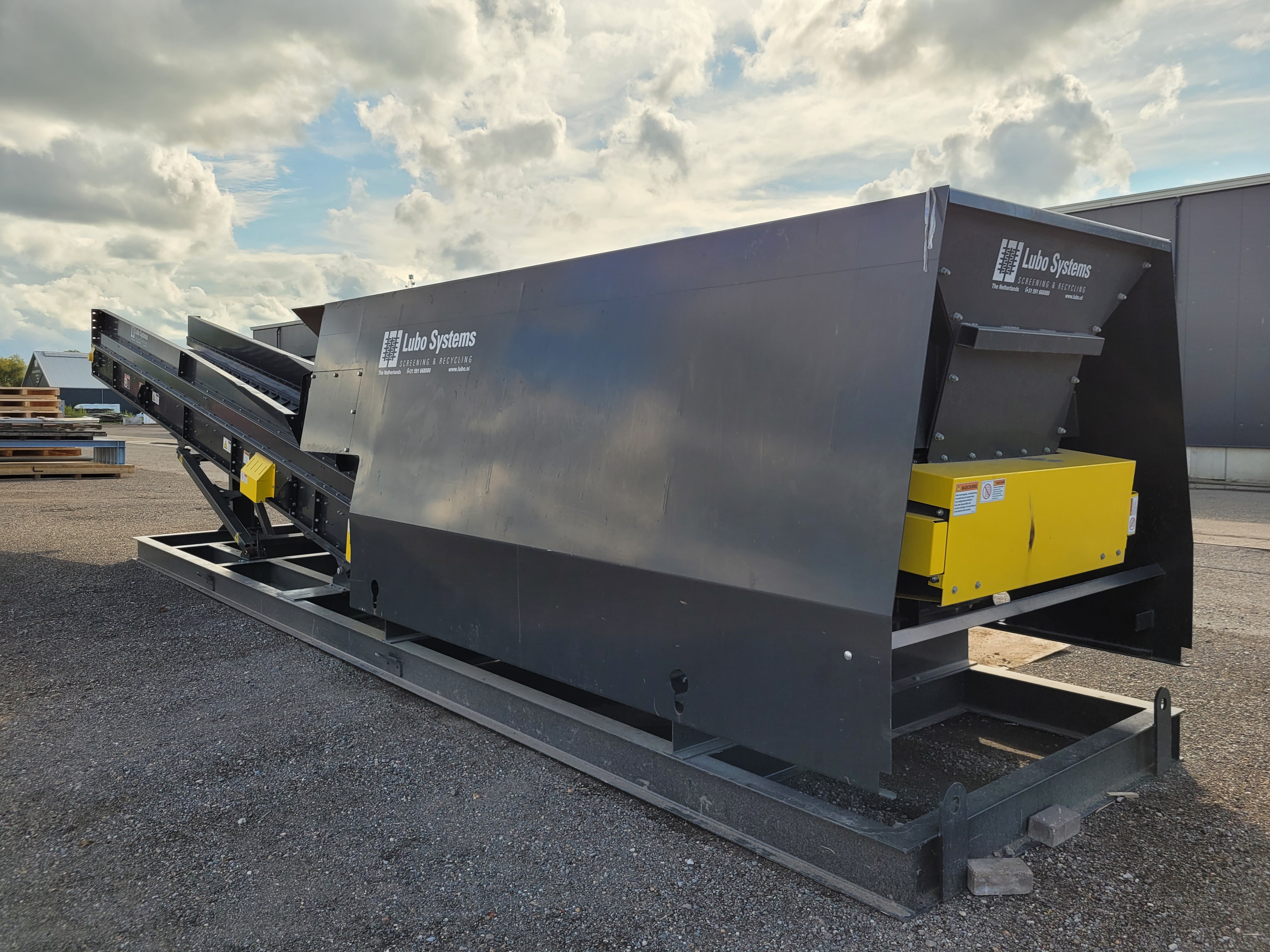

Mobile bunkerskid including feeding conveyor Mobile bunker skid
Specifications
Machine
| Type | Mobile bunker skid |
| Power | |
| Year | 2019 |
| Hours | 0 |
| Condition | As good as new |
Highlights
Additional information

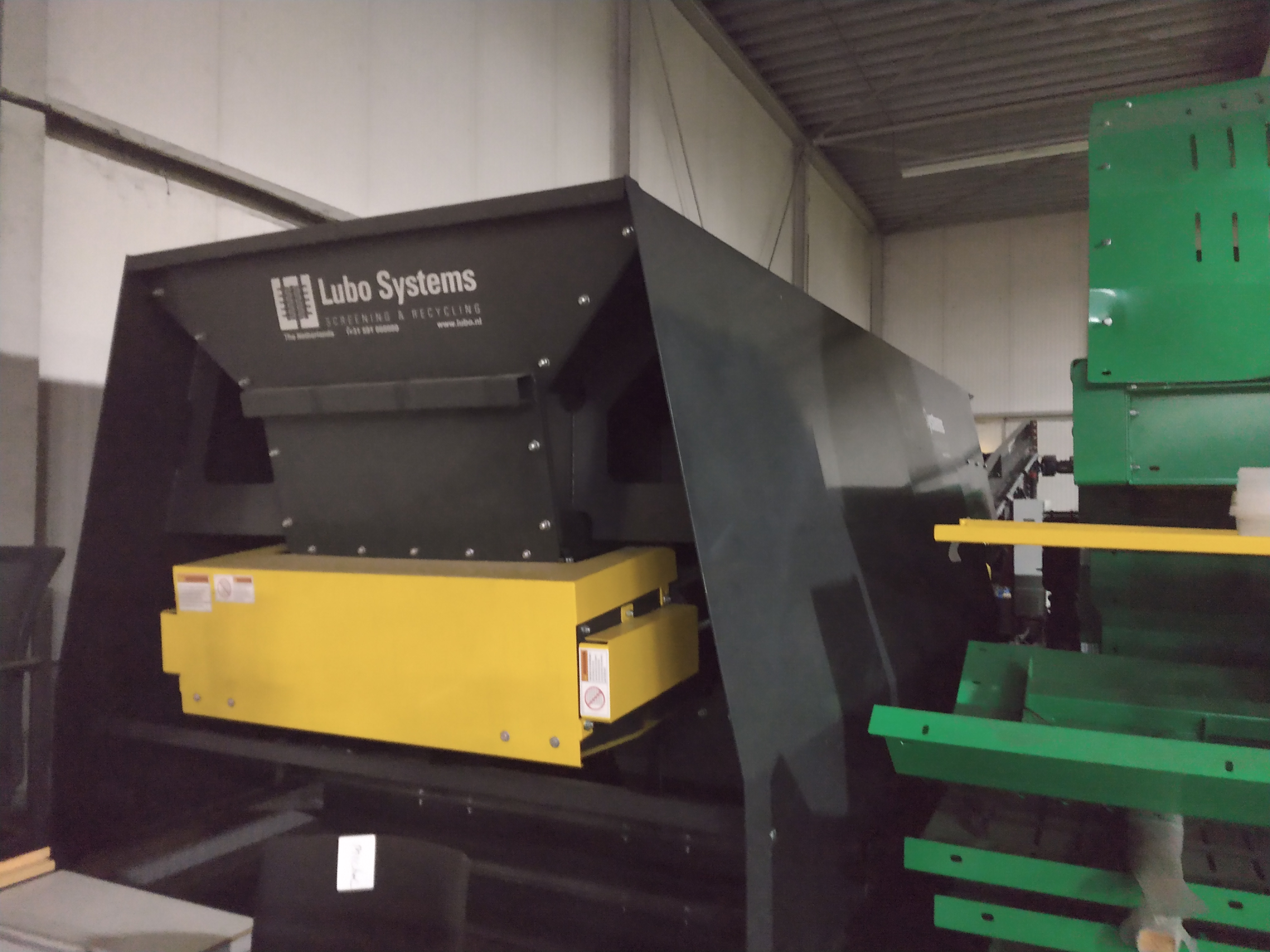

Bunker Type BRB 1200 * 5000
Belt width - 1200 mm.
Belt length - 5000 mm (shaft distance)
Drive power - 7,1 kW
Belt speed - 1 - 4 meter/minute
- The motor is equipped with a frequency inverter
for adjusting the belt speed
Ingress Protection - IP-65.
Material rubber belt - Type EP500/3, 6+2 Total thickness 8,8mm. Wear resistant.

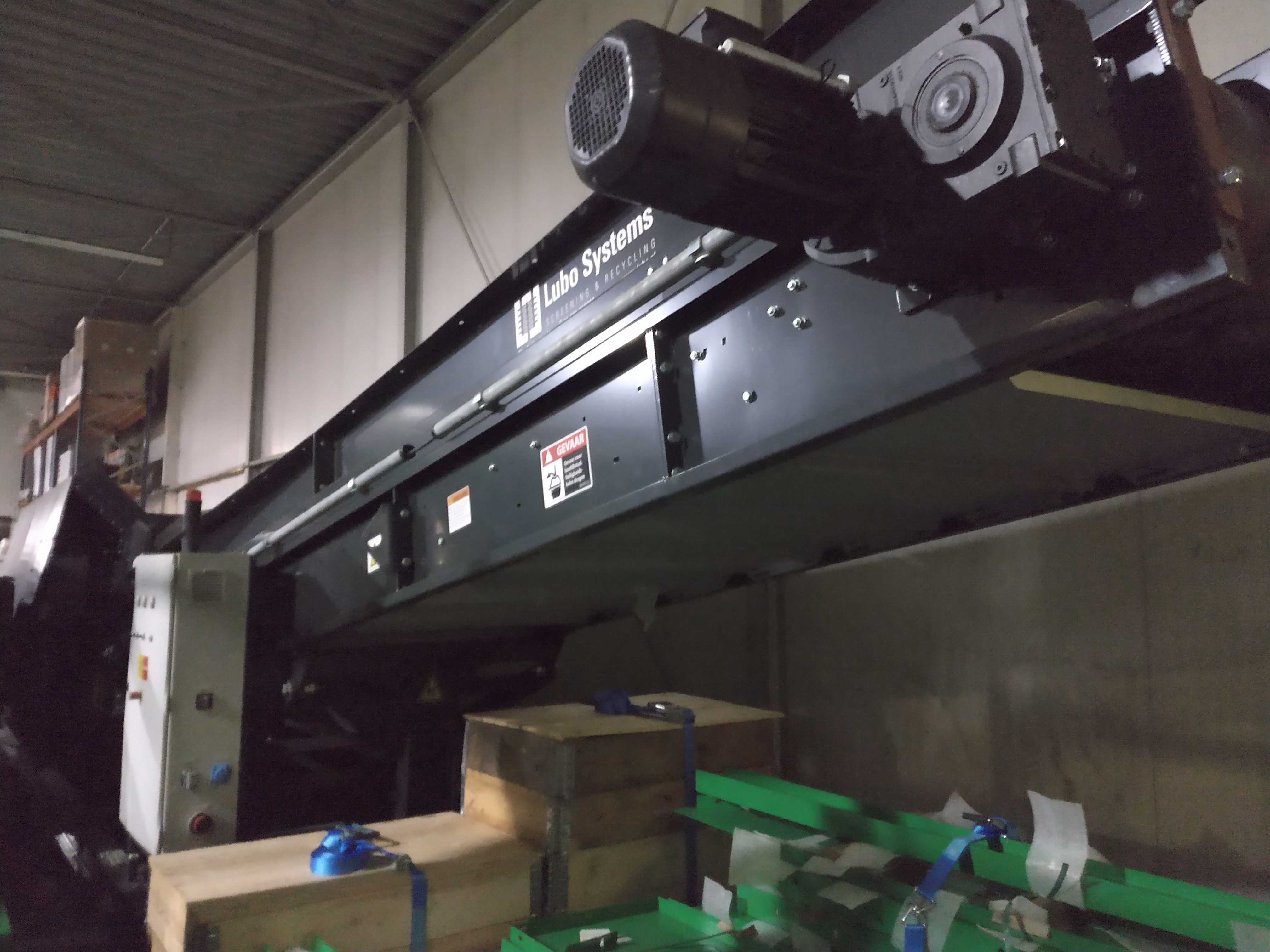

Incline Belt Type TBM 1200 * 8500
Belt width - 1200 mm.
Belt length - 8500 mm (shaft distance)
Drive power - 3 kW
Belt speed - 40 meter/minute
Ingress Protection - IP-65.
Material rubber belt - Type 400/3, 4+2, in 3 layers with a top and bottom layer, total thickness 8.8 mm, wear-resistant. Fitted with cleats (material is fed up well, there is a risk of contamination)

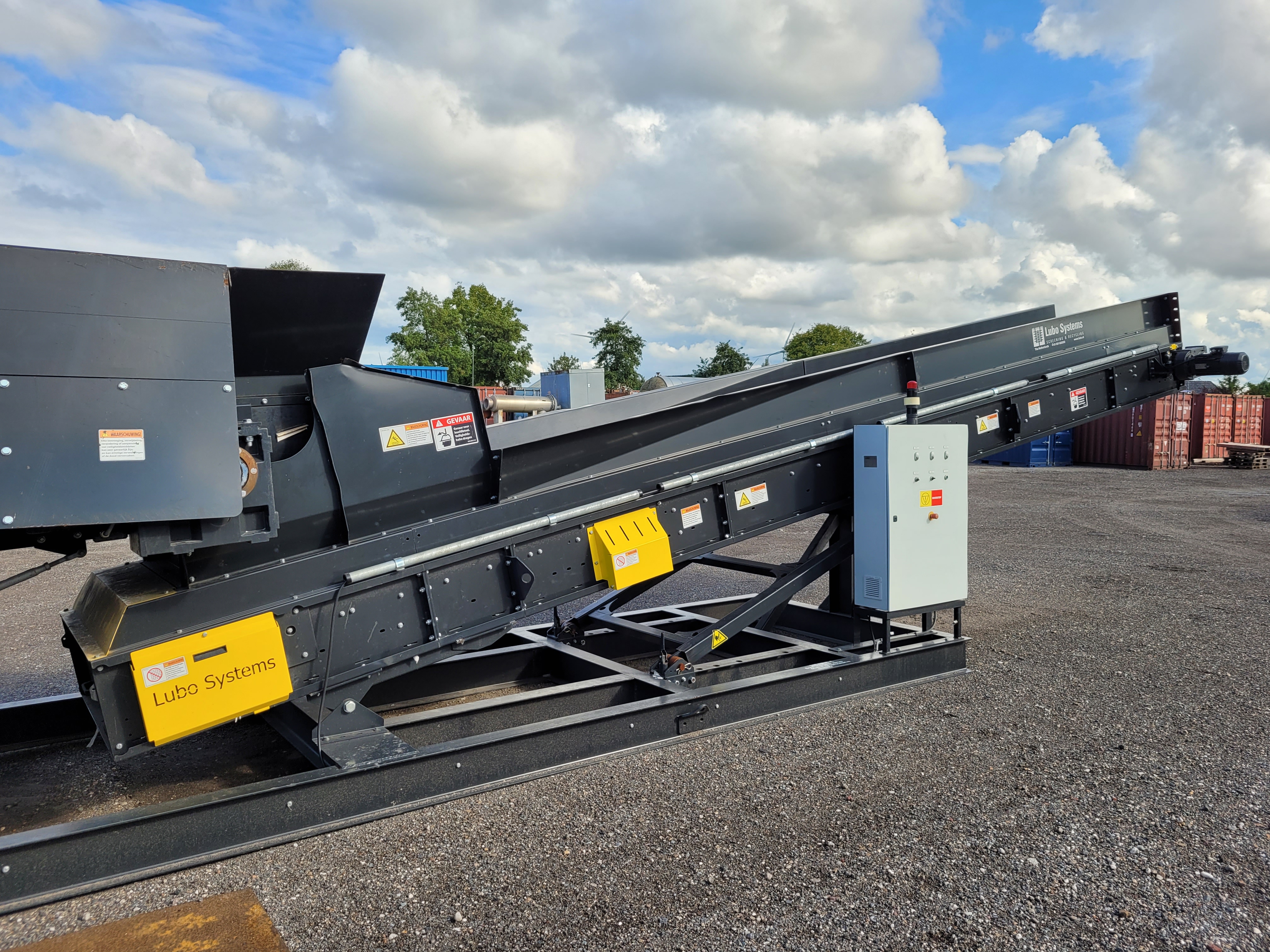

Semi-Mobile rugged skid
Height: 2560 mm.
Width: 2430 mm.
Length: 9960 mm.
Switchbox
Switchbox for bunker belt and incline belt
